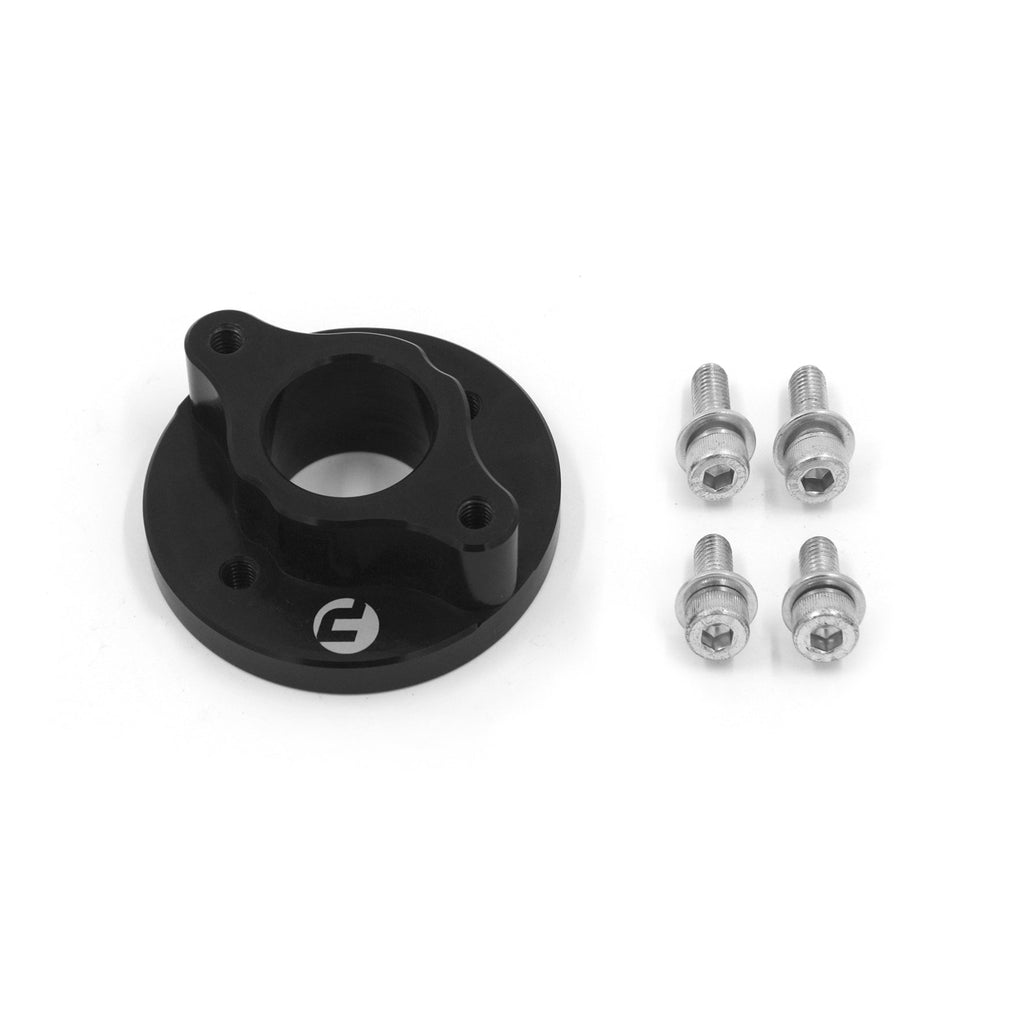

A clutch booster delete bracket is a part designed and manufactured by Franklin Performance to remove the factory clutch booster assembly on Nissan R32, R33 and R34 GTR Skyline vehicles.
Removing the clutch booster assembly enables greater clearance around aftermarket intake manifolds and also a more direct clutch pedal feel.
The bracket is CNC machined from billet 6061 aluminium at our factory in Napier, New Zealand and is anodised black for great looks and corrosion resistance.

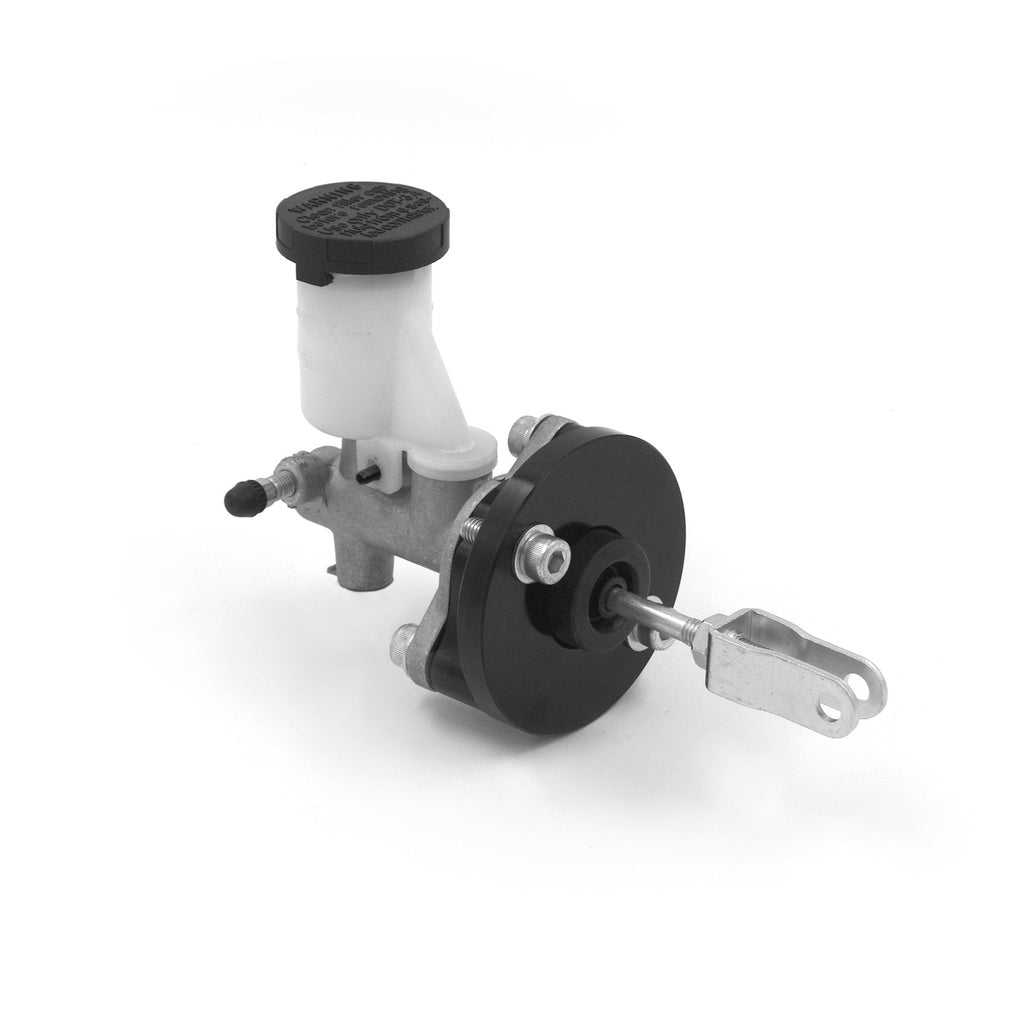

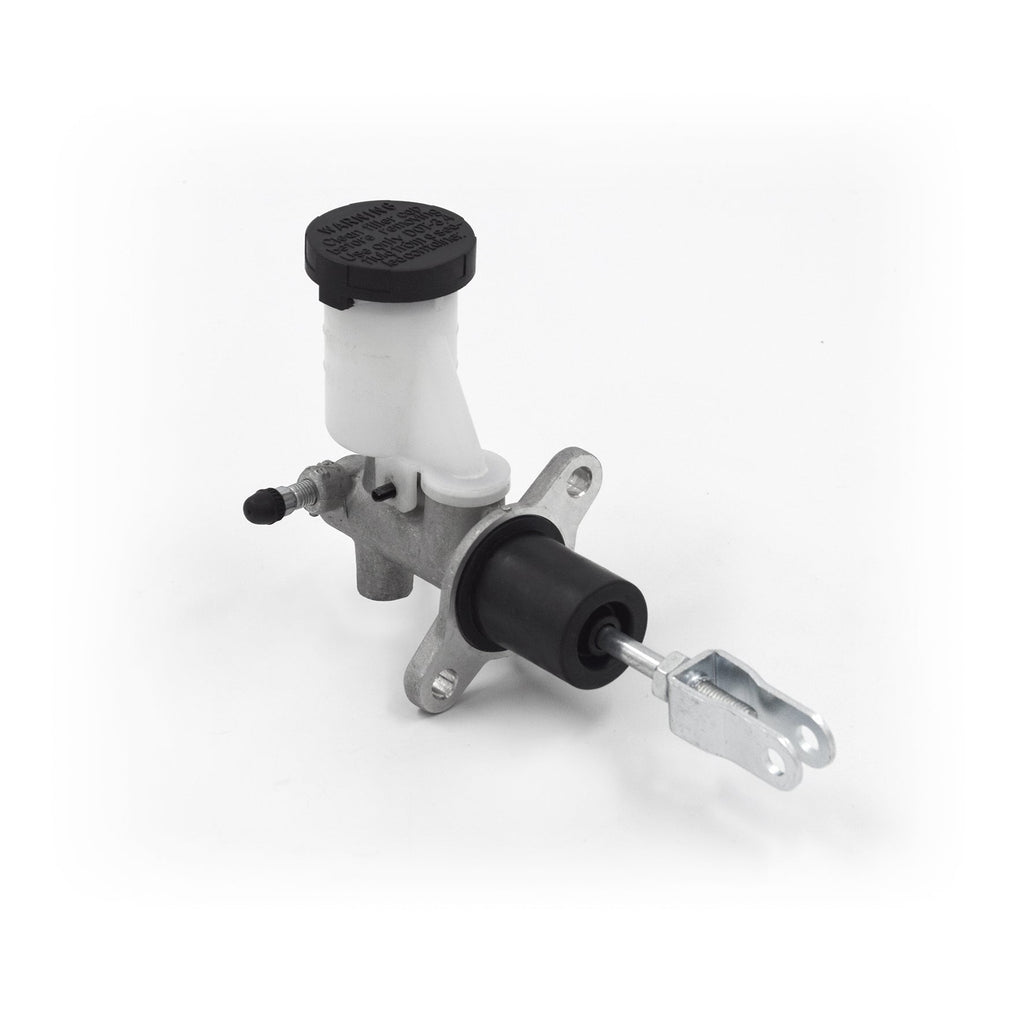

Supplied complete with all fasteners required for installation, and with the option of including the required R33 / S14 / S15 short style clutch master cylinder.
The total height of the bracket is 30mm. With one of our short style Nissan master cylinders the total distance from the firewall is 110mm.
