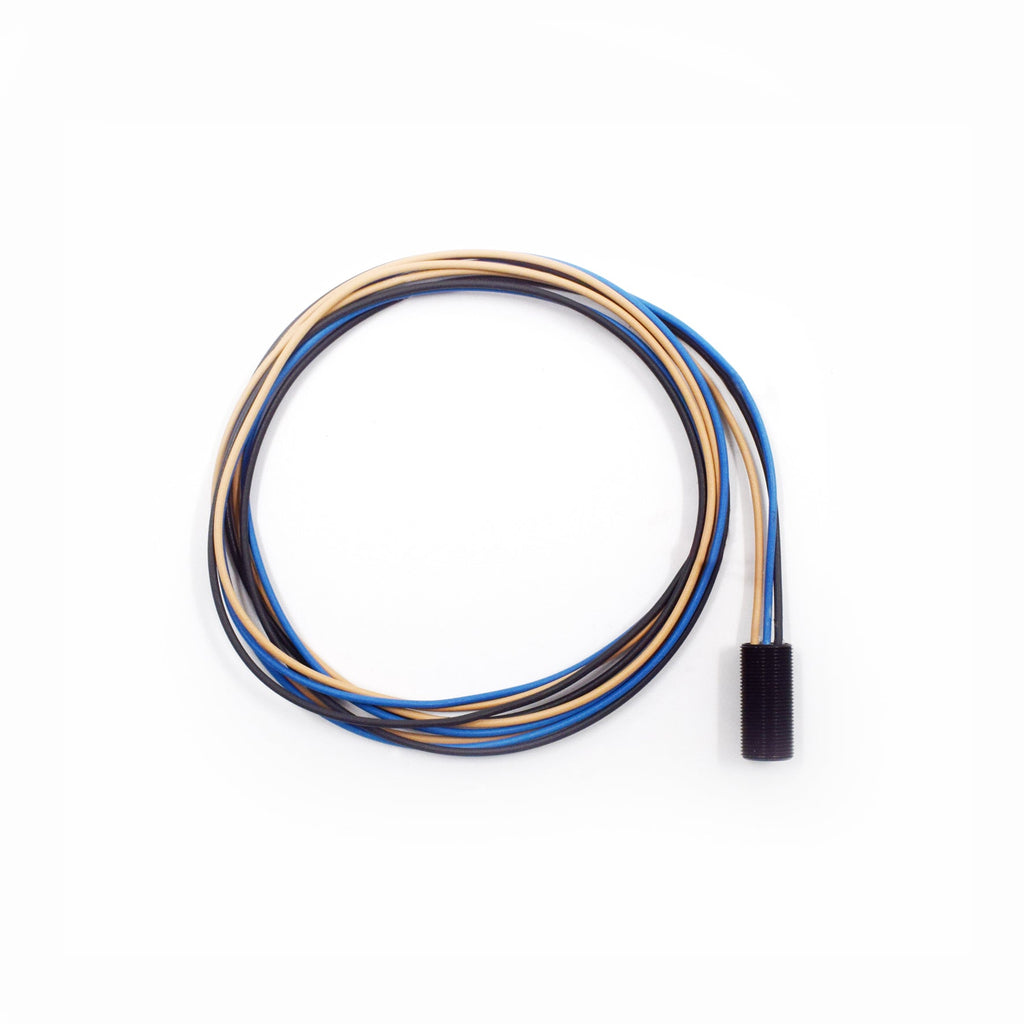

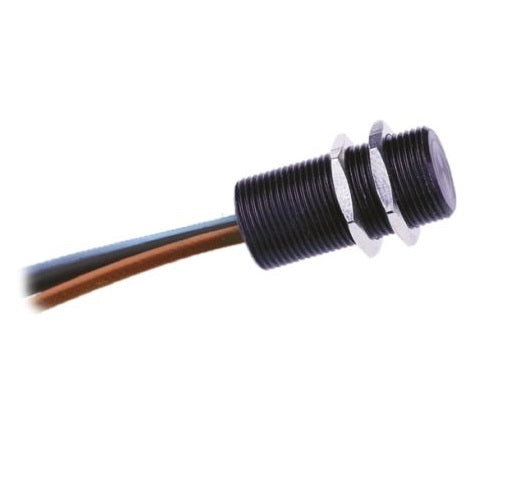

Cherry hall effect sensor, as used for our CAS trigger setups for Nissan RB engines.
15/32-32 threaded body, 1" long.
Operating Supply Voltage 5 to 24 VDC
Maximum Input Voltage 30 VDC
Maximum Reverse Voltage 24 VDC
Supply Current 3 mA typ., 6 mA
max Output Sink Current 20 mA max
Datasheet provided on purchase, or on request.
